TR4/TR5 roofing sheet roll forming machine or we call it as trapezoid profile roll forming making machine is designed to make the metal roofing sheet machine by rolling forming working principle. Tr4 or Tr5 is the quite popular design in South American, especially in Peru. Here I will take the following drawing profile for your reference:

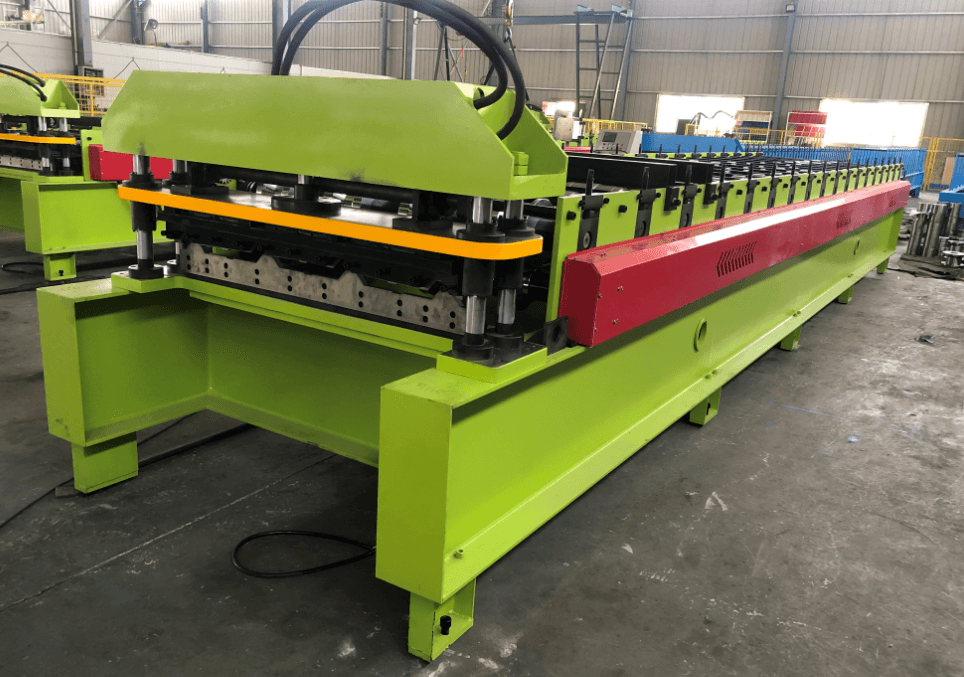

For this profile, the most difficult part is that during the rolling forming, there maybe waves on the profile or there are some scratch on the surface of the coil. The reason as that the wave height is too high, it needs around 22 roller stations to do the rolling forming. Here is the machine design pictures for your reference:
The work flow for roof profile machine
Why should Choose our Trapezoid Profile Roll Forming Making Machine?
- For the profile we can make sure 100% good as we have experience, we have sent around 20 sets per year same drawing to South American.
- For the roller we have our special design:
- For the PLC control system, Control station with aviation plug:
- For the language, we supports many type languages. And it allows you to set 20 batches production. The equipment control is PLC control, and multiple safety protection is set during normal production.
- The frame based is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
- The forming frame is cast iron structure and tempered. High strength and long service life.
- The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
- The material of the forming mold is Cr12, quenching treatment, hardness: HRC 56-62 °C.
- The transmission structure is double chain transmission,high-intensity operation, and long service life.
