Wall panel cladding machine
Wall panel cladding roll forming machine is one of cold forming machines producing all kinds of wall panel, including normal PPGI , color steel material or composite material. The wall panel is simple and fast, suitable for office buildings, business buildings, multi-storey residential areas, villas, factories, temporary houses, old building transformation and other building forms.

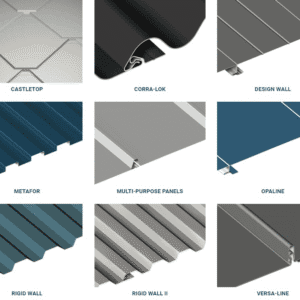

Here are some profile pictures:

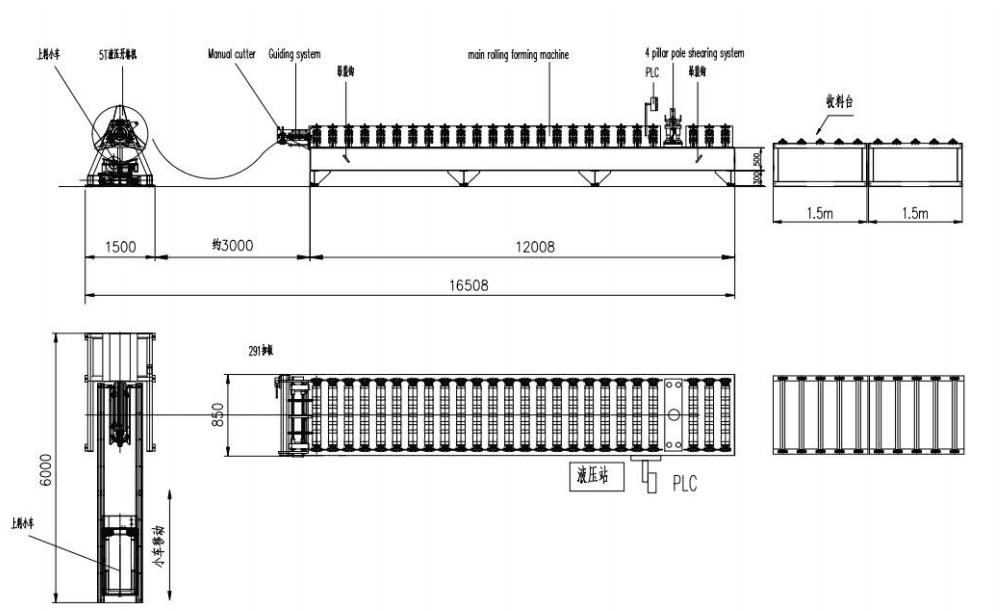

Work flow of wall panel cladding machine:
thickness:0.5-0.7mm
Rolling station：28 roller stations
Work speed：15M/Min
Roller shaft diameter：70mm
Middle plate thickness：20mm
Roller material：45# hard chroming
TransmissionBy Chain of size 1 inch
Machine power：7.5 kw
Shearing method:Hydraulic shearing
Shearing error：±1mm
Blade materiel:Cr 12
1. Good rubber rollers to protect steel surface.
2. Hydraulic pre-cutting design before roll forming.

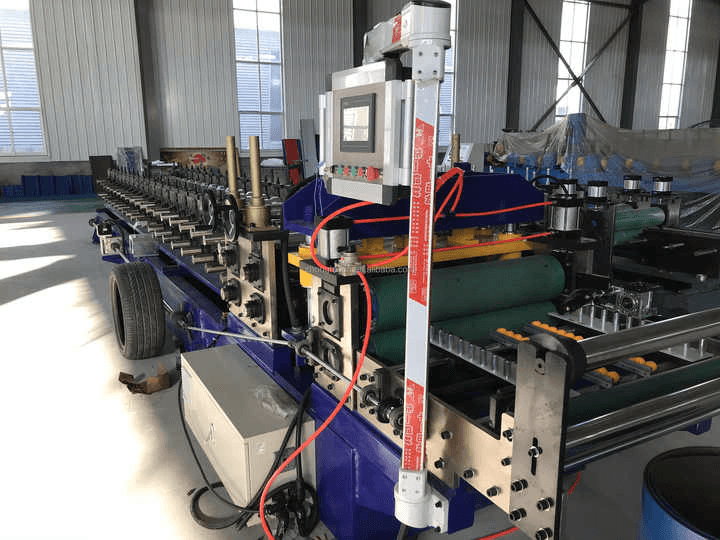

3. Hanging PLC control saves more place.
PLC brand: Delta from Taiwan
4.Encode: Omron

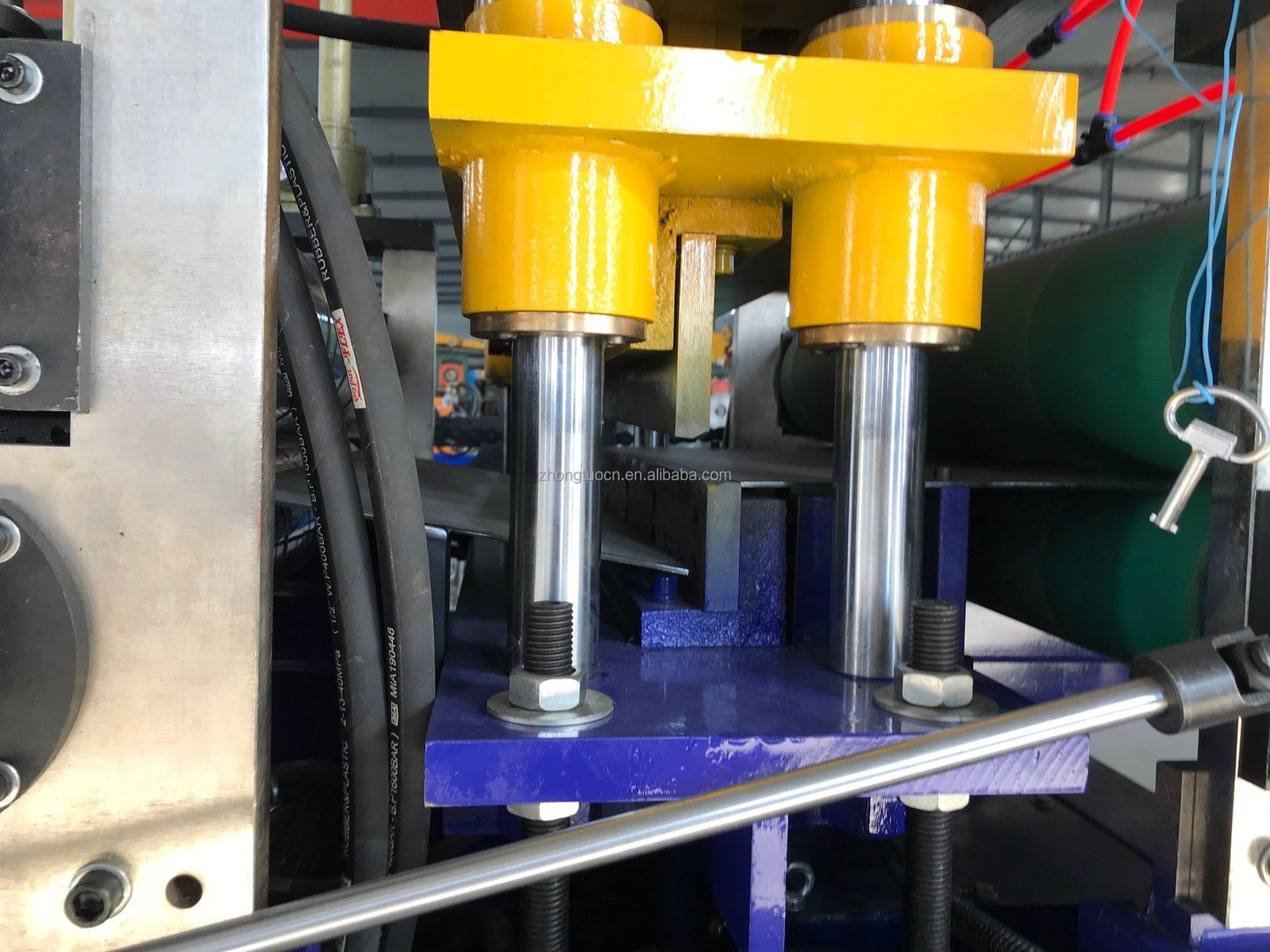

Hydraulic cutting with Cr12 Mov cutter for good hardness.

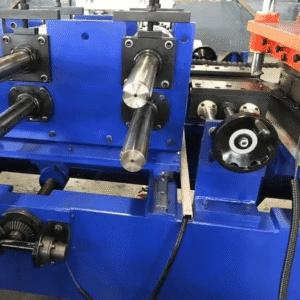

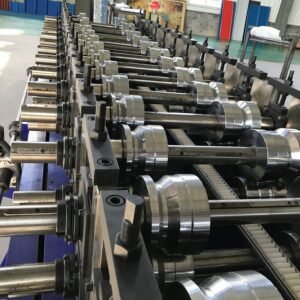

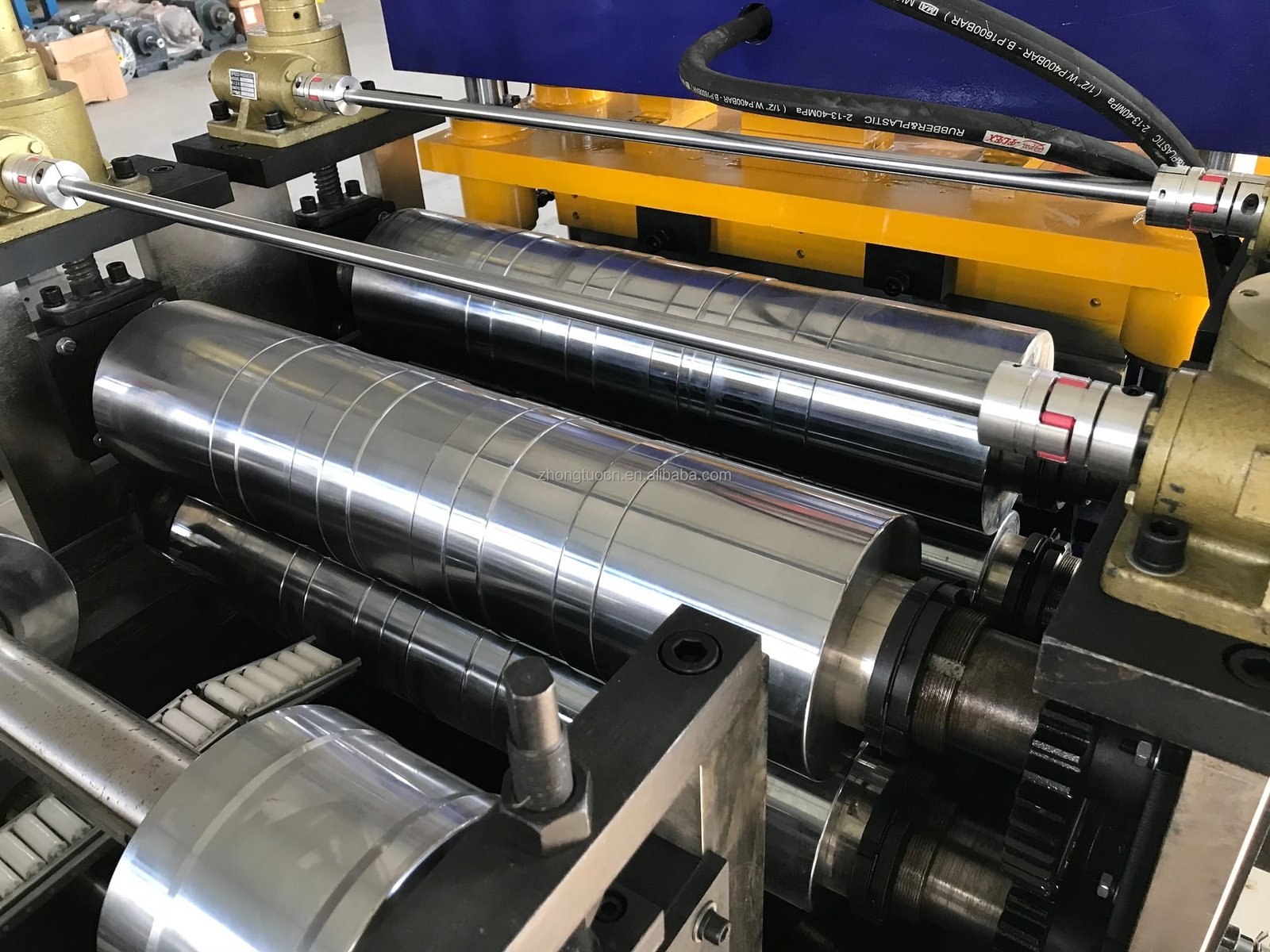

Thick shaft rollers for good support and long service life.
Strong machine structure with high quality. Not easy to deform.
