Standing seam roll forming machine
Standing seam roof panel forming machine is a kind of machine specially used for the production of roof panels, which can process metal materials, such as steel plate, aluminum plate, color steel plate, etc., so that it forms a roof panel with a specific shape and size, which is widely used in the construction industry, especially in the roofing system of steel structure buildings. Provide high quality roofing panels for large buildings such as factories, warehouses, gymnasiums and exhibition halls.
Work flow of standing seam forming machine:
Some profile pictures:
Raw material :PPGI,PPGL, GI,GL
Forming speed:20m/min(customized)
Decoiler: Manual decoiler
Roller station:18 rows ( As technical requirements )
Diameter of shaft:80mm solid shaft
Material of rollers:45# steel, hard chrome plated on the surface
Frame:350H beam welded
Drive:Chain transmission
Cutter:Cr12 material
Motor power:5.5kW
Hydraulic station power:4kW
PLC:Delta
1.Manual decoiler
Regular and passive type. simple in structure and low in cost.Equipped with manual wheel and brake.Not appear the deposition of material.

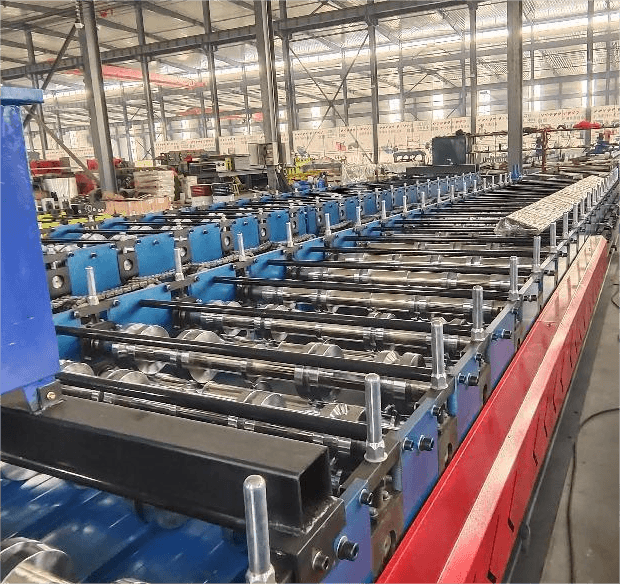

2.Main frame:
Set up inclined strut and bolster to improve the strength of frame. Our frame is welded by 350# H-shaped steel.
Lifting ear, lifting hole and lifting hole are convenient for loading and unloading.
3.Some parts:
Material of rollers is 45# steel with hard chrome plated on the surface. It has high hardness and long service life.
The size of shaft is 80mm which can be produced according to your requirements. The material is 45# steel. Our shafts are solid and not easily damaged.
The shaft and roller are arranged by the key grooves to prevent the linear speed of the shaft from being inconsistent with the roller, which will cause displacement.
Positive and negative turnbuckles,double lock nuts, and check mat can prevent the shaft from loosening during machine operation.
Spacer is made of 45# seamless steel pipe, which is strong enough to ensure the normal operation.After boiling black processing, not easy to rust.
Bearing can avoid paint scratches caused by inconsistent line speeds.

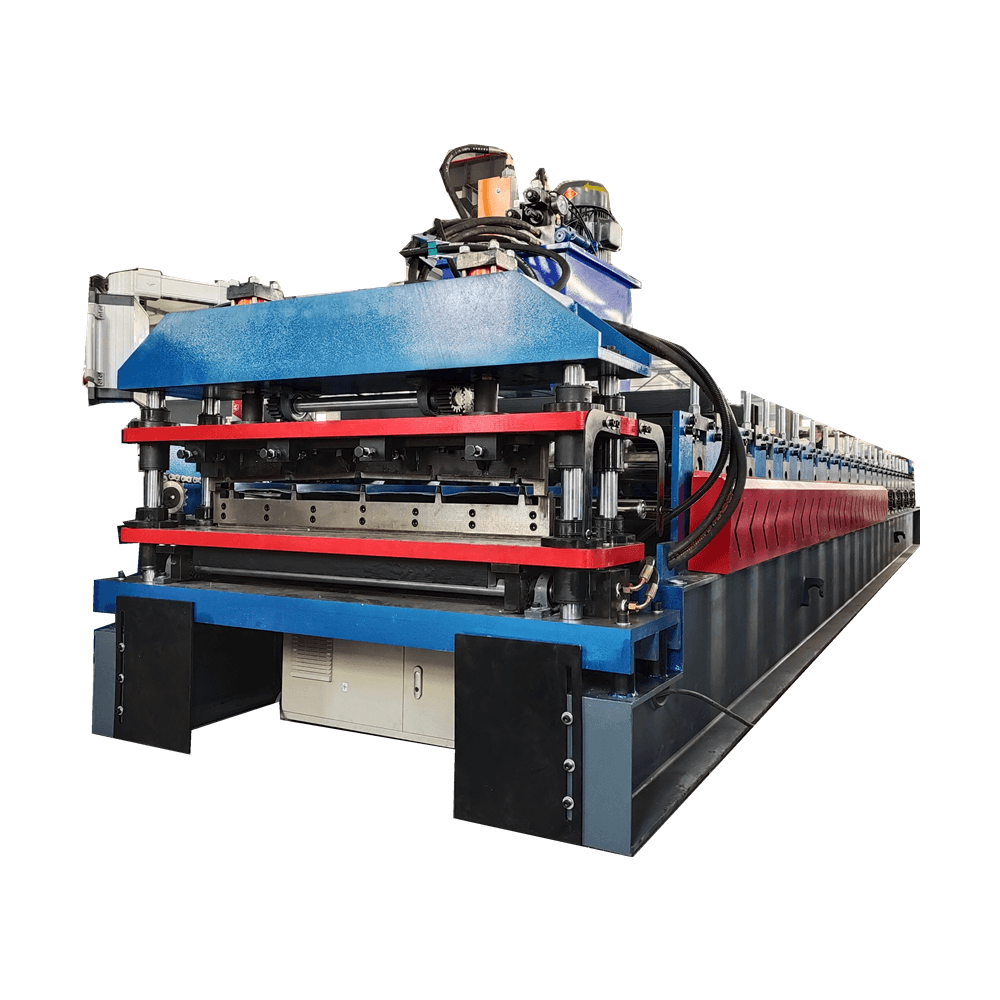

4.Hydraulic Shearing
The blade material is Cr12.Two lines of bolts and nuts to fix each blade, which has high stability.
5.Hydraulic Station
The oil of 46# and large valve with high cost which is not easy to block.
The power is 4kw.The capacity of the fuel tank is 80 liters.
Equipped with air cooling devices to prevent the hydraulic oil from overheating and affecting the operation of the machine.
The motor of hydraulic station is a Chinese standard brand with good quality.
6.Hanging PLC control system
The regular language of the panel is Chinese or English.It can be customized according to your needs.
We adopt well-known brands such as Delta, Schneider,Siemens.PLC brand is Delta and counter is Omron.
You can choose to install remote operating system of PLC. So that our engineers will debug it for you remotely when there is a problem with the machine.
