Roof Edge Roll Forming Machine
Drip edge and roof edge are two essential components in roofing systems that play a crucial role in protecting buildings from water damage. These components are typically made using roof edge roll forming machines, which are versatile and efficient tools used in the manufacturing industry.

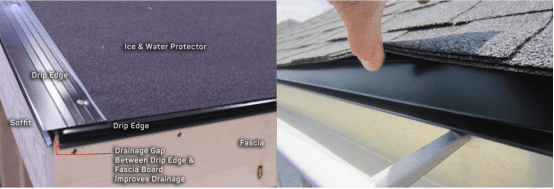

Drip edge is a metal strip that is installed along the roof’s edge to direct water away from the fascia and soffit, preventing water damage and protecting the building’s structure. It is commonly made using roll forming machines, which bend and shape metal sheets into the desired shape. The roll forming machine uses a series of rollers to gradually form the metal into the desired shape, ensuring consistency and accuracy in the final product. Drip edge is particularly useful in areas with high rainfall, as it helps to channel water away from the building and prevent water buildup.

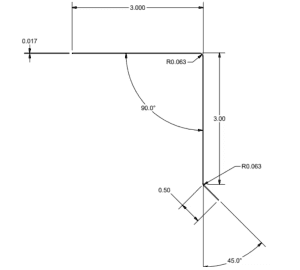

Profile drawing for reference:
L shaped flashing is a versatile, general use flashing used where a uniform or strengthened finish is needed on a 90 degree surface.
Roof edge, on the other hand, is a metal trim that is installed along the perimeter of the roof to provide a neat and finished appearance. It is also made using roof edge roll former, which can create complex shapes and designs. The roll former can bend and shape the metal into intricate patterns, allowing for a customized look that complements the building’s architecture. Roof edge can be made from various materials, including aluminum, steel, and copper, and is often coated to resist corrosion and weathering.

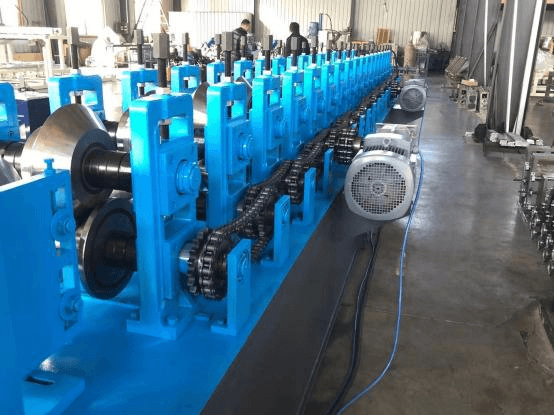

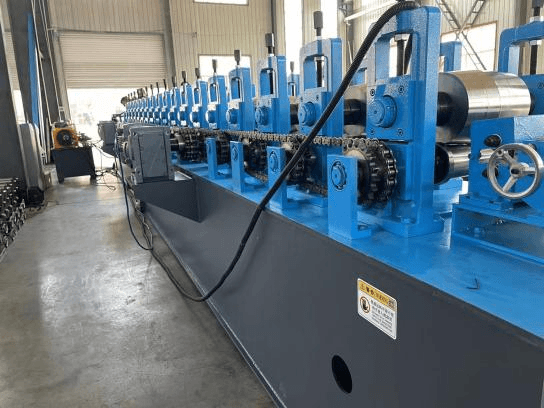

The machine frame adopts a 20mm thick steel plate welding structure. Ensure that the machine can bear larger weight rollers and roller frames.

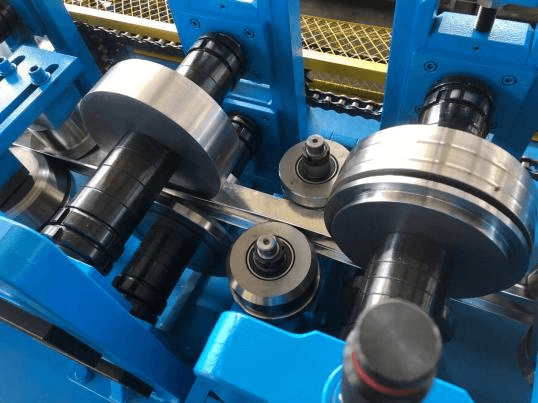

The material of the roller is GCr12 MOV

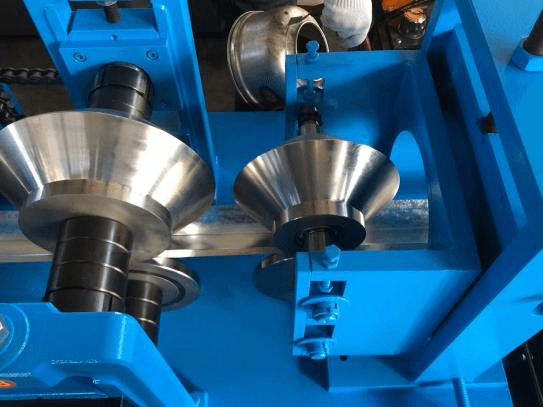

The material of the roller is 40Cr. Roller diameter: 60mm

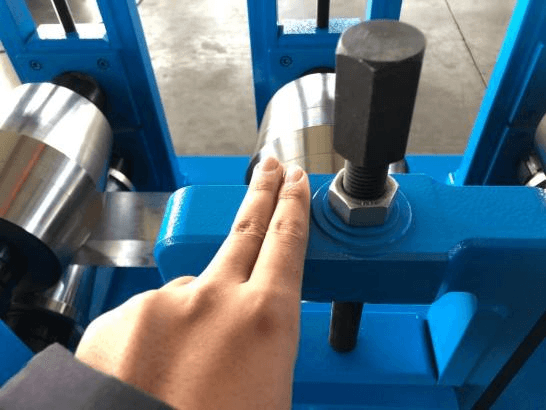

The roller shaft frame is: mold frame

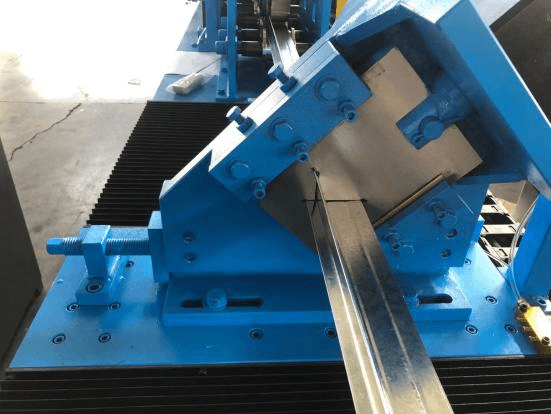

Cutting method: servo tracking cutting
Servo motor power: 2.3kw
Drive motor power: 7.5+7.5kw

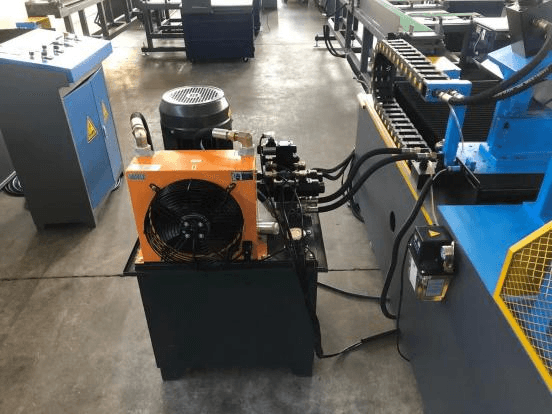

Cut off power: 5.5kw
In summary, operating a roll forming machine requires attention to detail and adherence to safety guidelines. By following these steps and maintaining the machine, users can produce high-quality products that meet the needs of their projects. Whether you are producing drip edge or roof edge, a roll former is a valuable tool that can streamline the manufacturing process and ensure consistent and accurate output.
