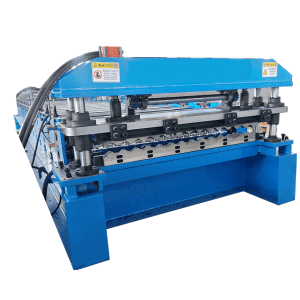

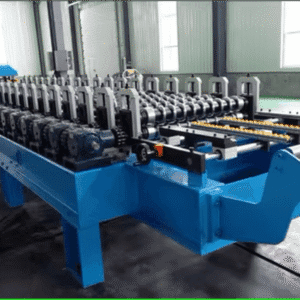

High Speed Corrugated Metal Roofing Sheet Machine

Advantages of High Speed Corrugated Metal Roofing Sheet Machine
High speed:0-40m/min（speed customized 0-80m/min）
Special Design Cutting Device：Whole producing line just need one person for operation.
Stable Transmission: gearbox drive.

High Speed Corrugated Metal Roofing Sheet Machine

A high-speed corrugated metal roofing sheet machine is an industrial equipment designed for efficiently and rapidly manufacturing corrugated metal roofing sheets. These sheets are commonly used in construction for roofing purposes due to their durability, strength, and resistance to weather elements. The machine automates the process of forming, cutting, and shaping metal sheets into the desired corrugated profile.

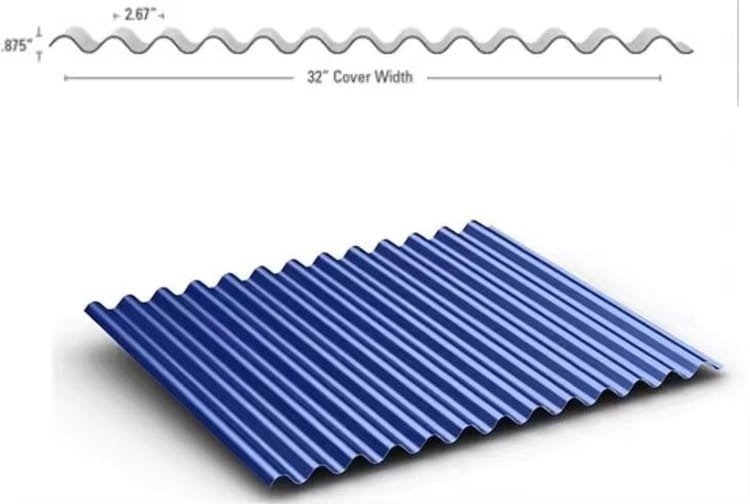

Profile drawing of Corrugated Metal Roofing Sheet Machine：
This type of corrugated roof sheet is extremely popular in the United States. Having successfully sold numerous machines to America, we possess extensive experience in ensuring the finished product meets high standards and is well-suited for the market.

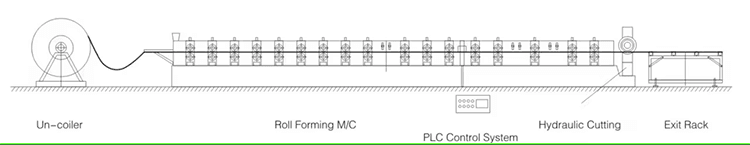

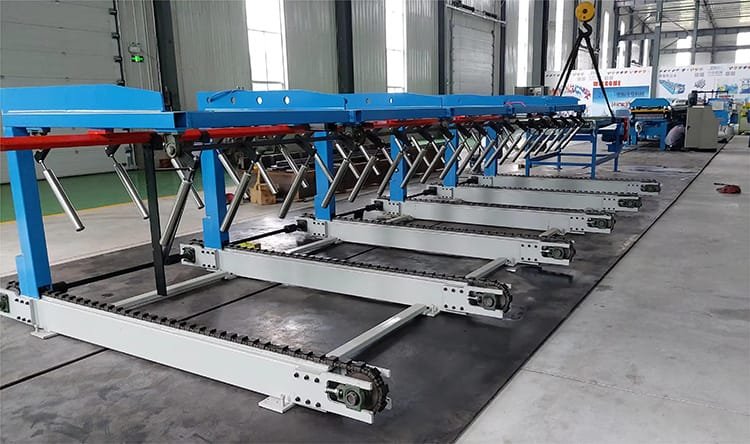

Processing Flow:
Decoiler-feeding material-roll forming-cutting-receiving the product

High Speed Corrugated Metal Roofing Sheet Machine:
1. Raw Material: PPGI,GI
2. Material Thickness: 0.3-0.8 Mm
3. Machine Frame: 350# H Steel Frame Welded
4. Machine Structure: Vertical Arch Frame Structure
5. Material Of Rollers: 45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
6. Forming stations: 21 stations
7. Diameter of shafts: Φ80mm
8. Material of shafts: 45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness
9. Forming speed: About 0-40m/min
10. Voltage: 380v 50hz 3phase Or As Request
11. Transmission: Gear Box Transmission(Bevel Gear Inside)
12. Material Of Gear: 20 Crmnti
13. Material Of Gear Box: Iron Casting
14. The connection between gear boxes are chains
15. Gear box will connect with the rolling station one for one
16. Advantage: can improve the speed directly after cutting
17. Work power: 11 kw ( gear reducer and servo motor driving)
18. Cutting blade material: Cr12Mov quenched treatment to improve hardness
19. Cutting type: No stopping Hydraulic cutting
20. Machine weight: about 15 Tons
21. Machine dimension: about 10000*2000*1400 mm

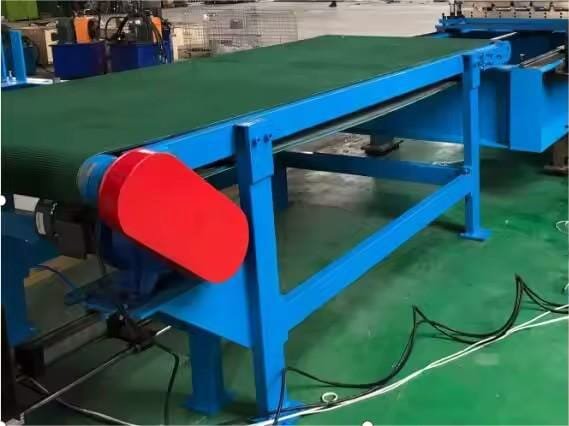

Feeding Device
The metal coil is fed into the machine through a set of rollers and guides to ensure a smooth and continuous process.
1. Utilizes rubber rollers to safeguard the surface of raw materials.
2. Easy adjustment for varying thicknesses of raw materials using handwheels.
3. The platform width is conveniently adjustable via handwheel, featuring built-in bearings to safeguard the steel sheet’s edges.

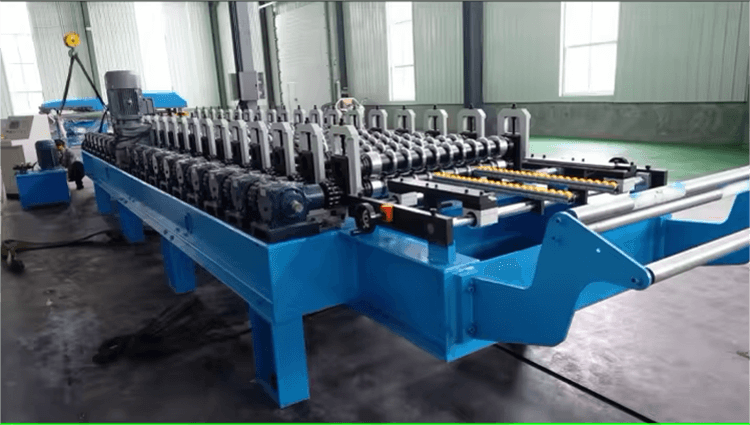

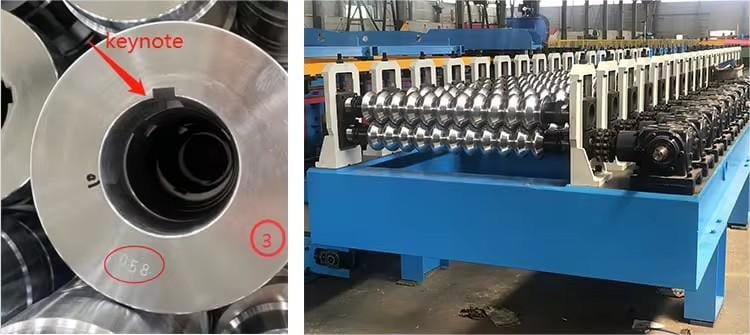

Roll Forming Device
This is the heart of the machine, where the metal sheet is formed into the corrugated profile. A series of specially designed rollers and dies shape the metal as it passes through this section.
1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely

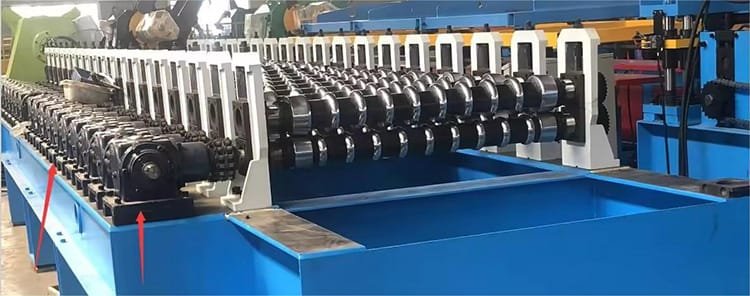

Transmission device
Gearbox transmission,stable and no loose.

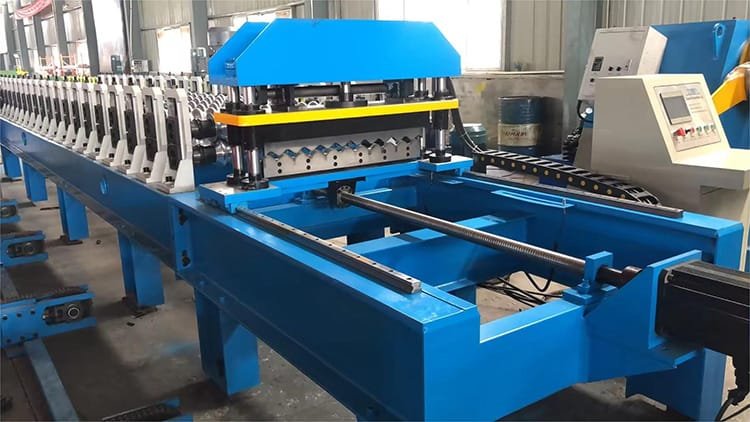

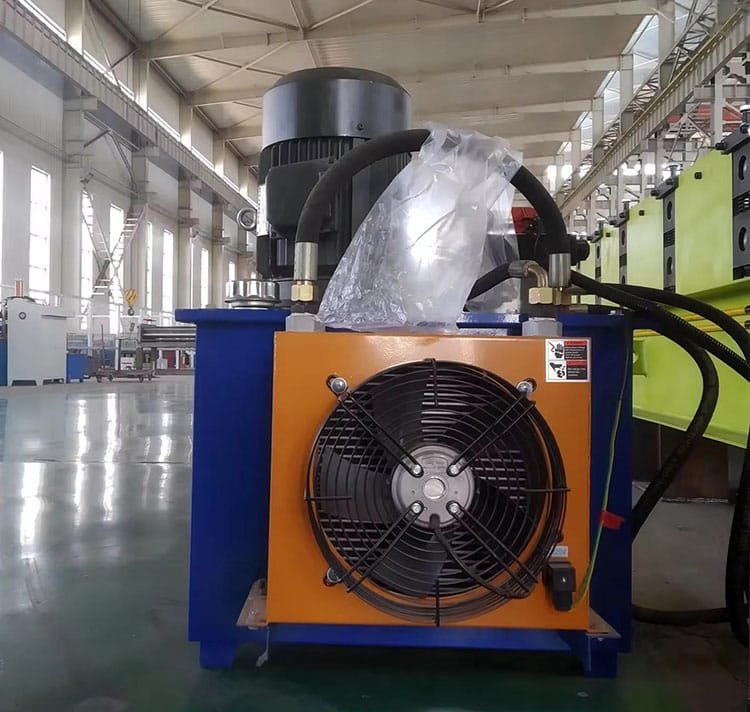

Hydraulic Cutting Device

After the metal sheet has been corrugated, a cutting mechanism is employed to cut the sheet to the desired length. This can be achieved through various methods, such as shearing or rotary cutting.
1.Work type:hydraulic servo track cutting servo motor 5.5KW
2.Driving method:By pillar type Cylinder
3.Hydraulic motor power:4 kw
4.Cutter material ：GB-Cr12 with heat treatment
5.Cutting length tolerance ±10m/2mm

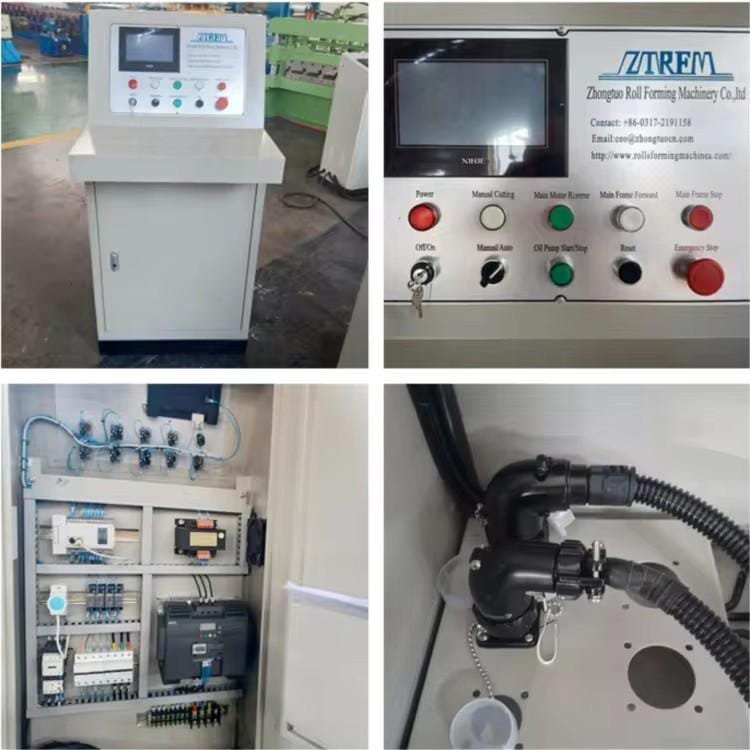

PLC control system
Modern machines are equipped with a control system that allows operators to set parameters, monitor the production process, and make adjustments as needed. This may include features like touchscreen interfaces and programmable logic controllers (PLCs).
Brand
PLC brand : Delta
Inverter brand: Delta Low electric part: Schneider
Encoder: Omron
Function:
1.Adopted aviation plugs,easy installation.
2.Full automatic easy operation.
3.Operation language:English(provide customized)
4.National coinsurance,spar parts Brand Siemens and Schneider
