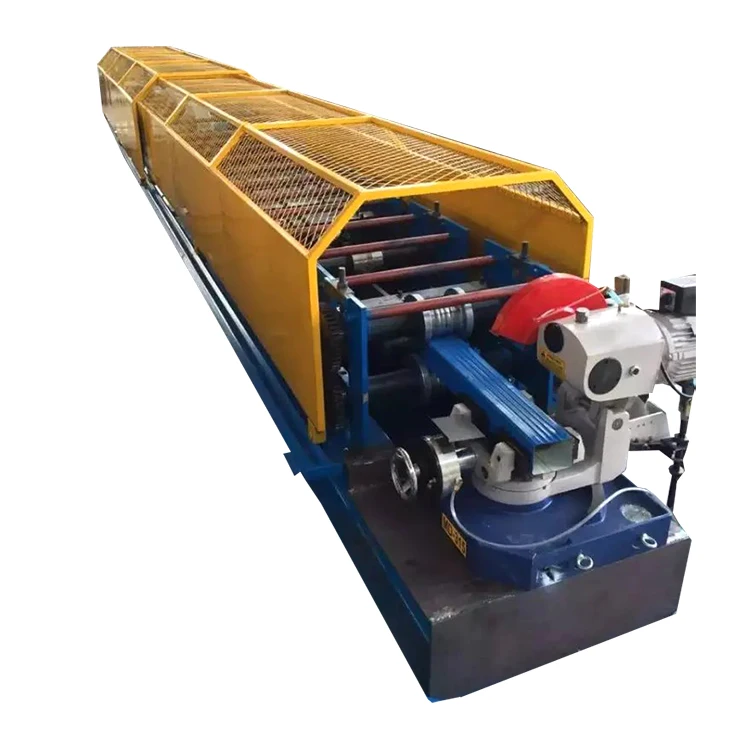

Downspouts pipe roll forming machine
Downspouts pipe roll forming machines are typically used in the construction industry, specifically for new building construction, gutter system replacements, and for the repair or extension of existing gutter systems. They are also used in the production of rainwater harvesting systems, where the downspouts collect and direct water to storage tanks or gutters.
Downpipe use:
Collecting roof rainwater is an integral part of the falling water system, which is concentrated into the rainwater pipes laid below the ground.
Downpipe material can be divided into:
1. Metal pipes (such as cast iron pipes, colored aluminum pipes, copper pipes, colored steel pipes, etc.)
2. Plastic pipes (such as PVC pipes, etc.)

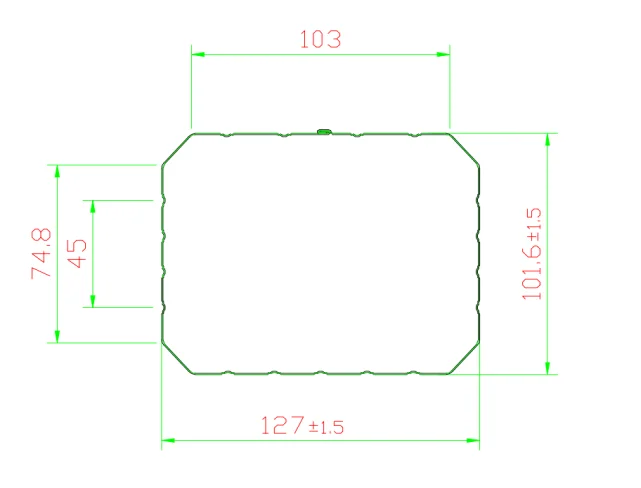

Profile drawing of downspout pipe roll forming machine as below:
Here is the downspout profile drawing and dimensions for your reference.
This interlock design don’t need any welding, it can save cost in machine production.
|
Product
|
|
|
Details
|
Parameter
|
|
Raw material
|
PPGI,PPGL,GI,GL
|
|
Material thickness
|
0.5-0.8 mm
|
|
Cutting length
|
Adjustable
|

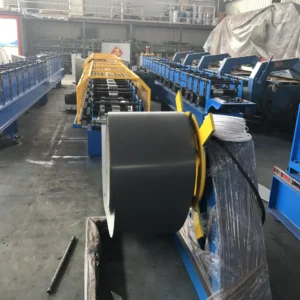

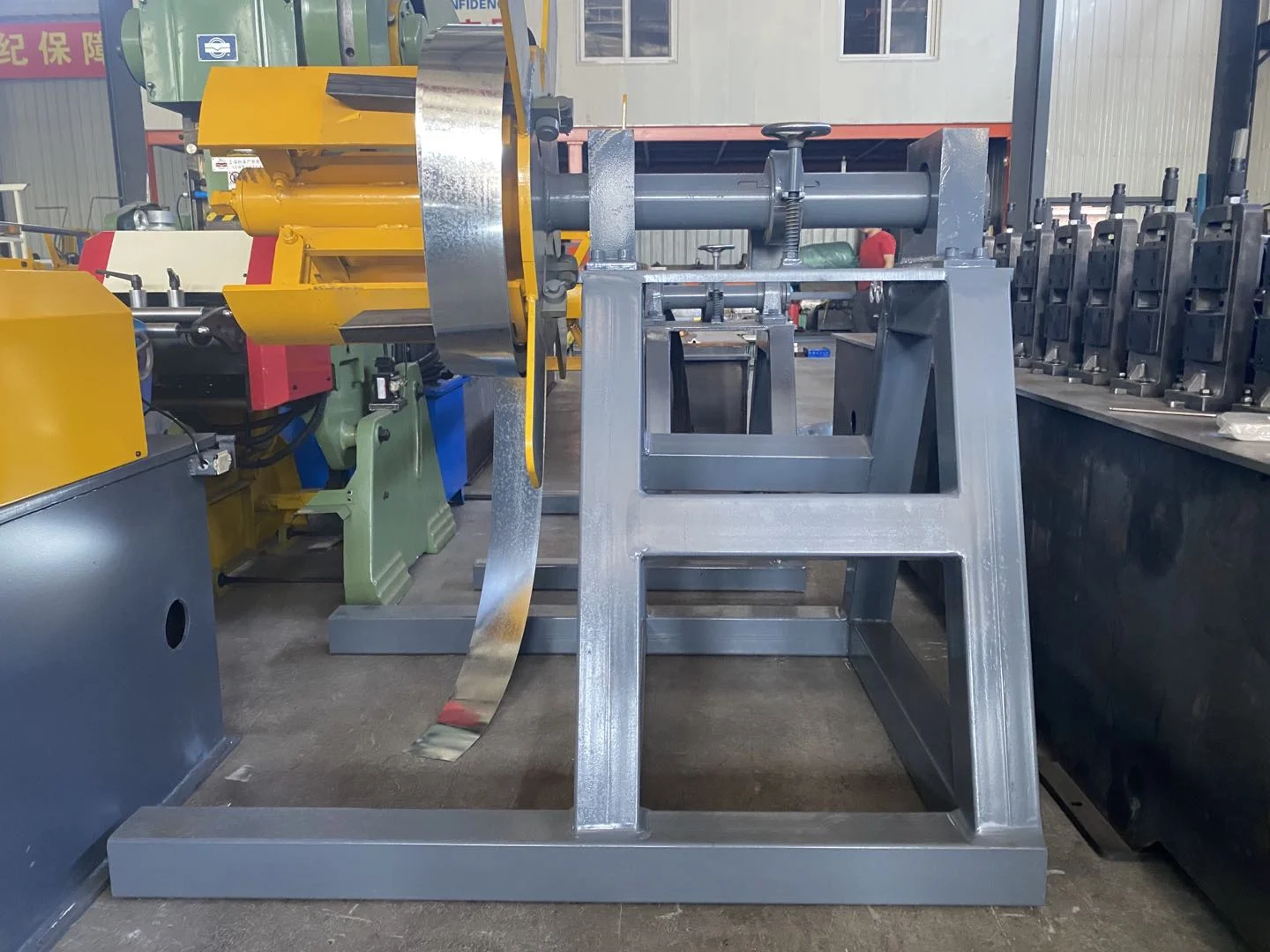

Work type：Passive type
Loading capacity：3 Tons
Coil inner diameter：450-550 mm (adjustable)
Quantity：1 set

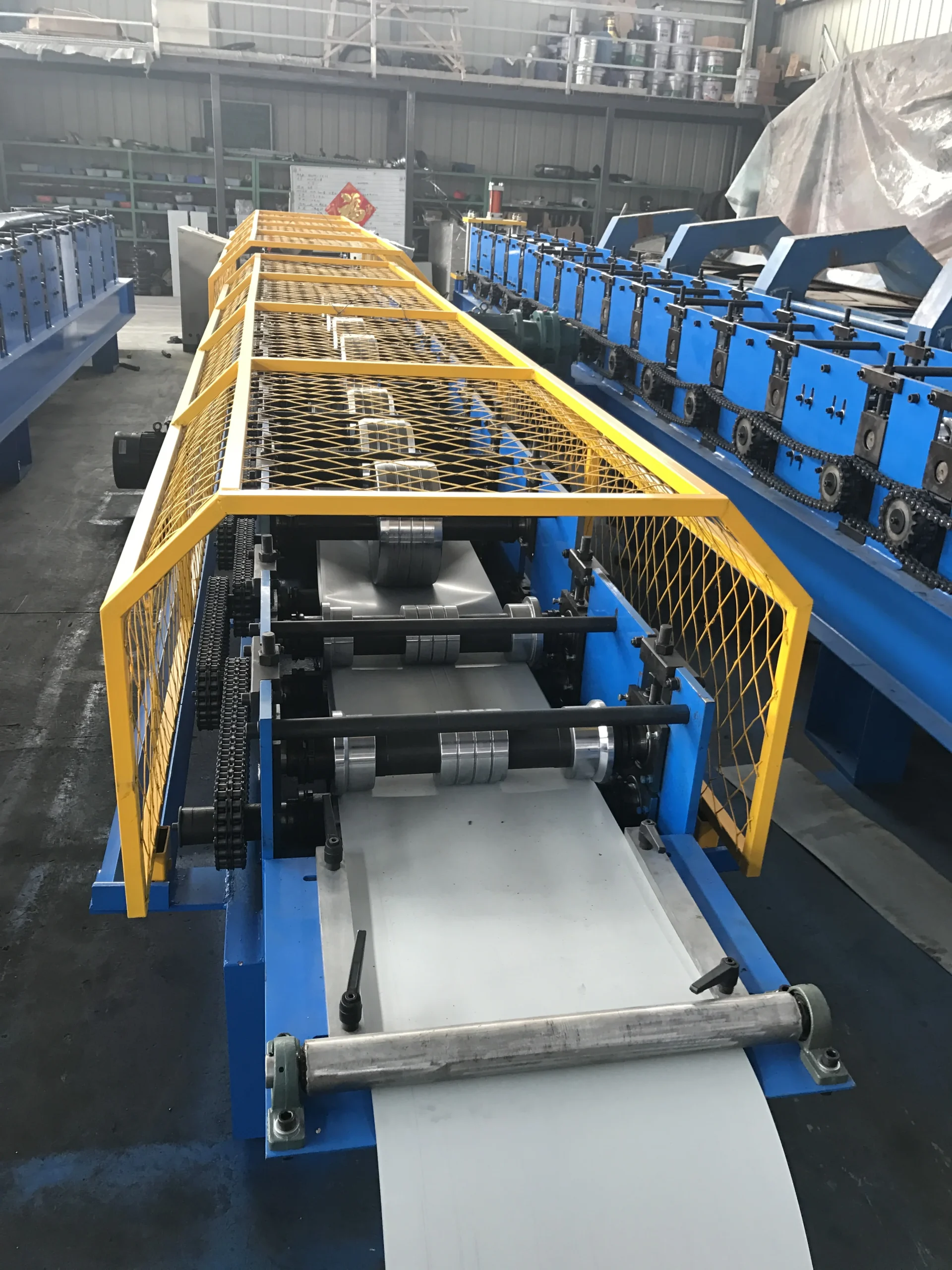

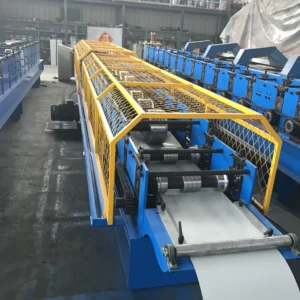

2.Main roll forming system
Rolling shaft:
Shaft material: 45# steel
Shaft diameter: 70 mm
Tempering treatment
Roller:
Roller material: 45# steel Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station number:22 stations
Work speed:0-10 m/min
Machine frame: 20mm thick steel wall plate
Bearing:Chinese famous brand Harbin
Work power:7.5 kw
Transmission:By chains

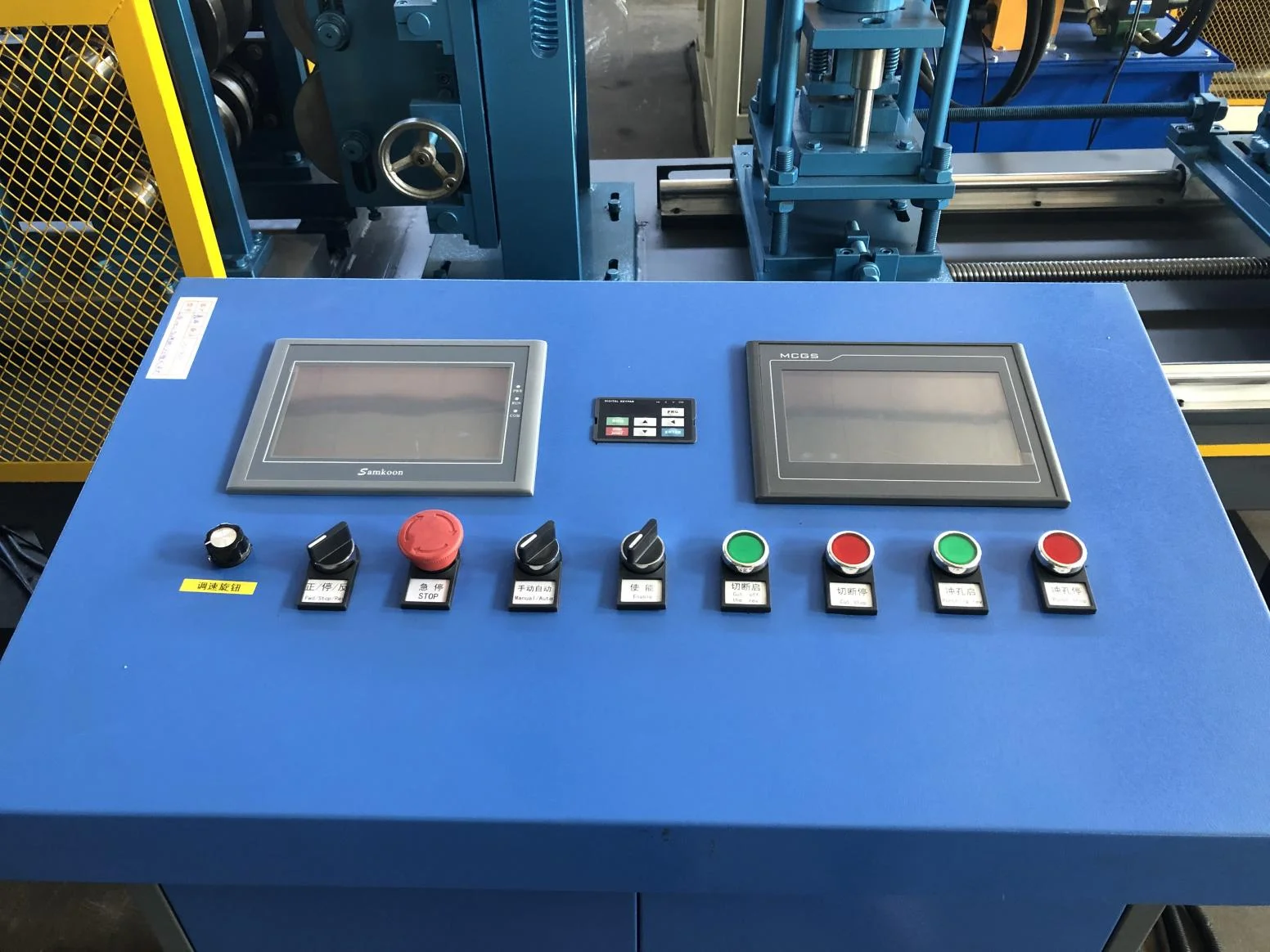

3.PLC Control System
Frequency brand: Delta (original)
PLC brand: Delta (original)
Screen type: Touch screen & buttons
Screen language:English/Chinese
Encoder: Omron
Low pressure electrical part brand: Schneider
Function: Cutting length and quantity control, speed adjustment control, dimension adjust.

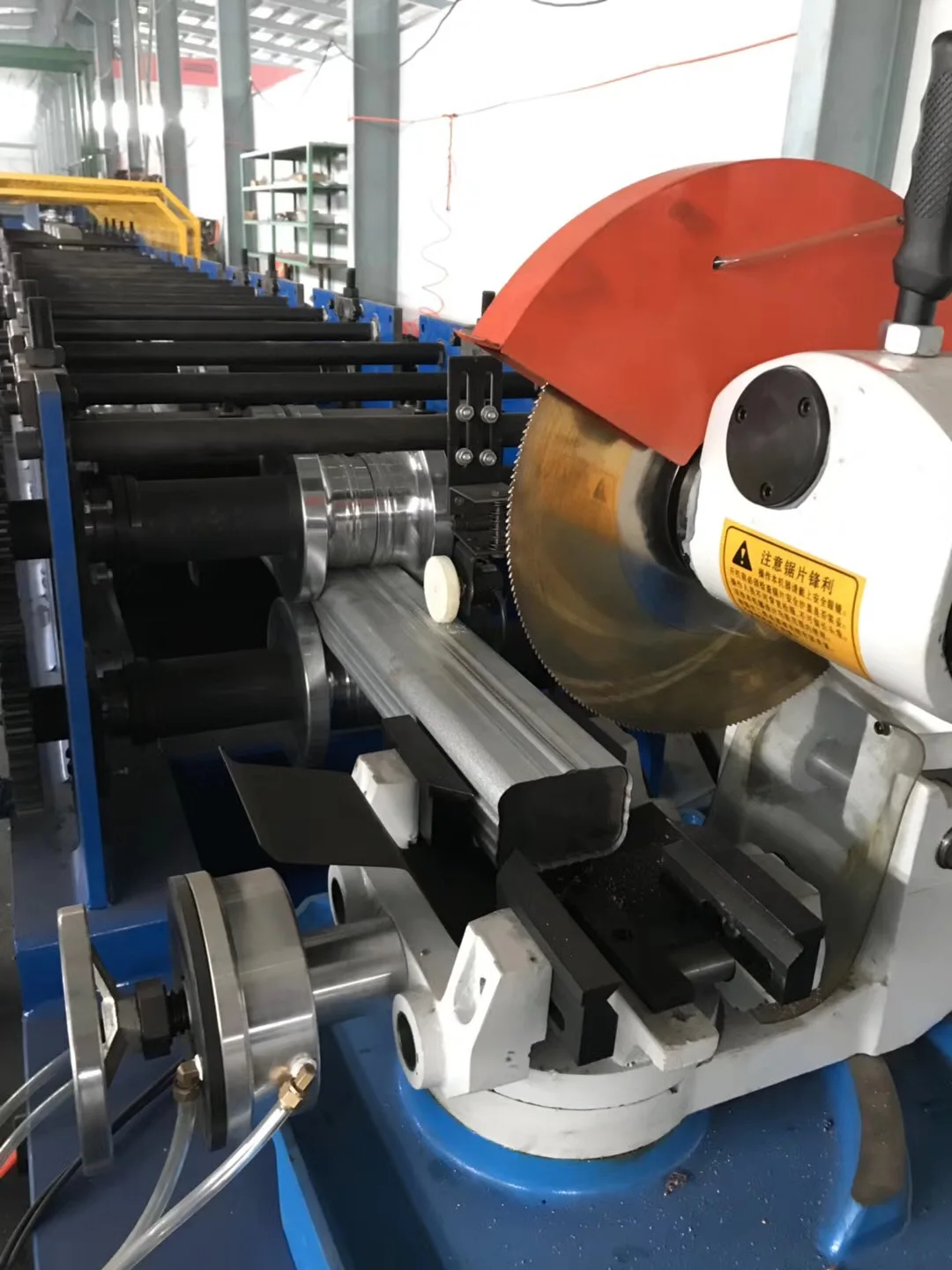

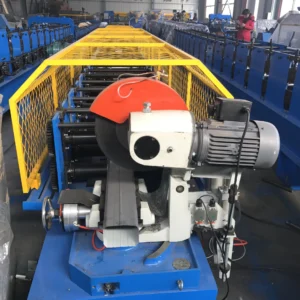

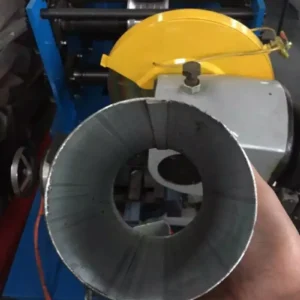

4.Flying saw cutting device
PLC brand: Delta
Work type: flying saw cutting with no burrs
Motor power: 3 kw
Cutting length tolerance:±1 mm/3 m
Cutting feature: Automatic cutting after forming, no distorting.
