Double layer roofing sheet machine

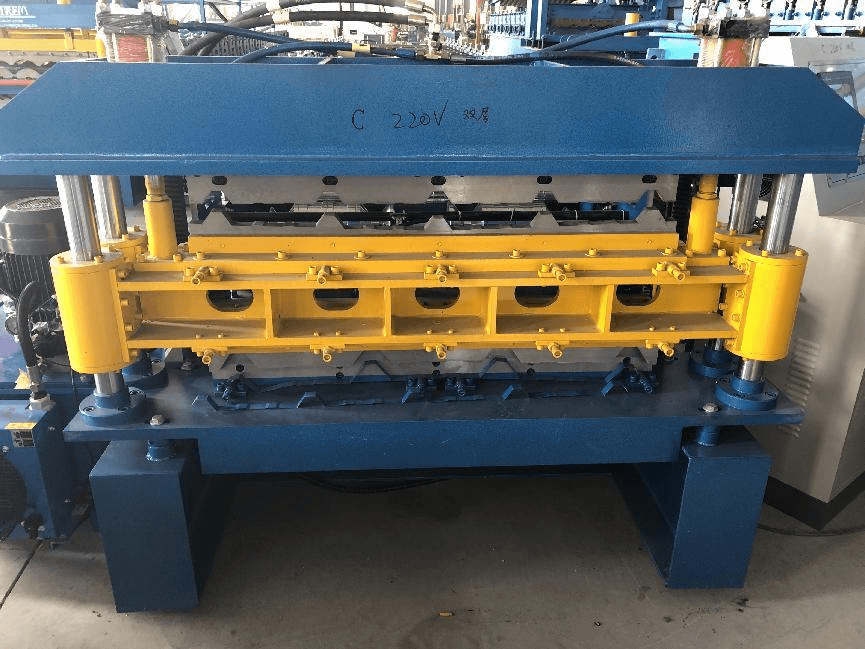

Double layer roof tile machine is a cold forming equipment that can produce two different types of tiles, suitable for customers with limited space, but can only produce one shape of tile at a time. The type of tile can be customized according to the customer’s needs.

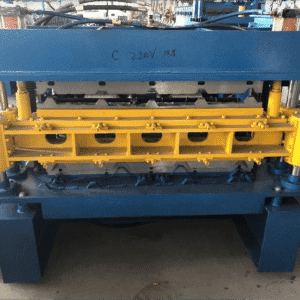

Double layer tile pressing equipment is equipped with a clutch device, with this device, the upper and lower layers of the machine will not work at the same time, which can reduce the wear of the drum, and the life of the machine will be longer.
Hydraulic decoiler

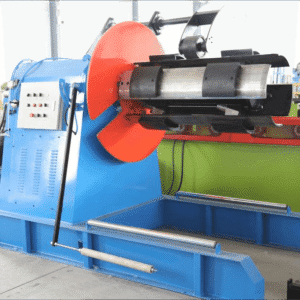

Four circular arc arms are very steady and will keep the coil in shape compared to the square tube arm.
There is a groove in the battle, so that when the steel coil is hoisted by a sling, it can be conveniently accessed.
Dovetail groove type diameter adjustment mode of the decoiler is more stable and has better bearing capacity.
We design three supports and one pressure, and the rollers can be rotated, which can reduce the friction between the steel and the rollers. The top roller also prevents the steel from sticking up.

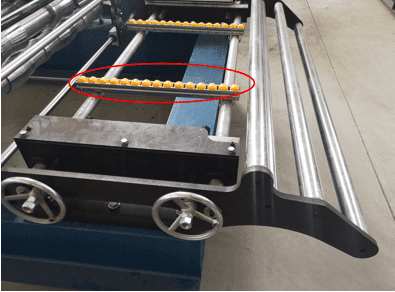

Each layer has two rows of rubber rollers, which also avoid material scratches.

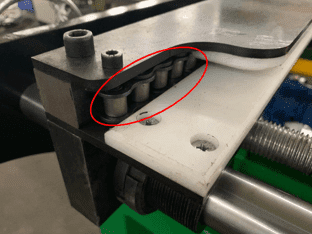

The side has chain links and nylon brackets, which protect the steel from scratches. The upper nylon plate has a partial missing to observe the position of the steel when feeding.
Insert screws also prevent scratches to the steel. The hand wheel on the side can be used to adjust the feed width for precise feeding.
Main roll forming system of double machine producing two types of ibr roof sheet

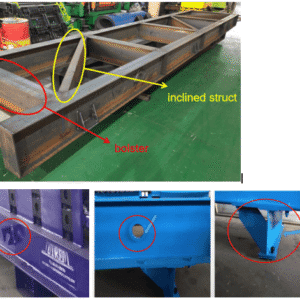

1.Frame is welded by 500# H-shaped steel. The H-shaped frame and the design of the inclined strut and bolster increase the strength of the frame. The lifting ear, lifting hole and lifting hole are convenient for loading and unloading.

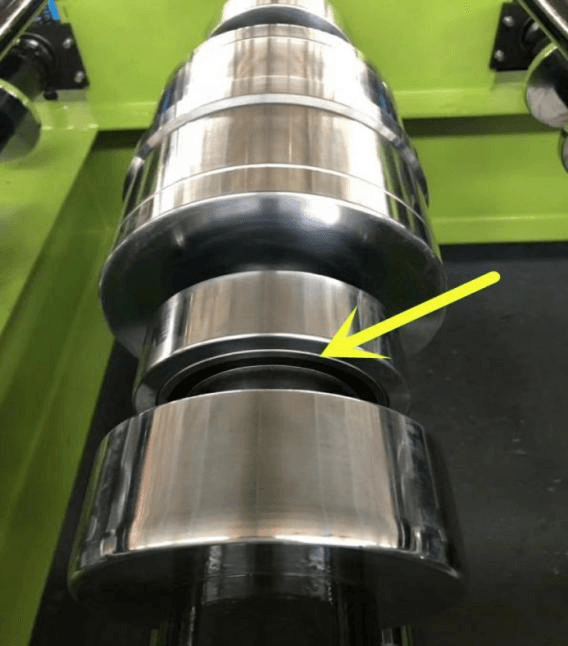

2.Our rollers are generally made of 45# steel processed by electroplating hard chromium. The roller has high hardness, long service life. It also can prevent rust , and keep the product clean.

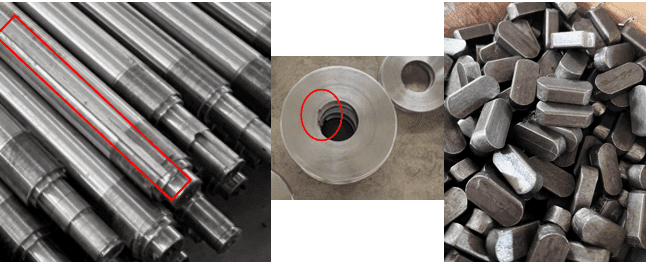

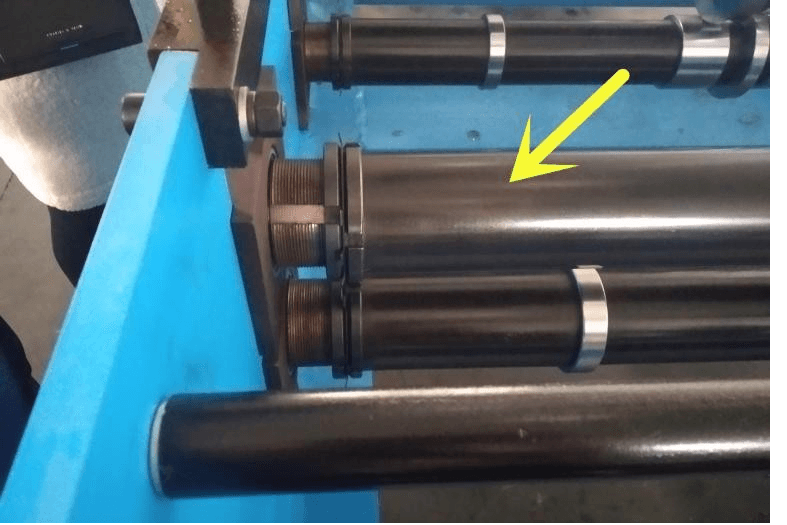

3.The size of the shaft are 80mm according to your requirements. The material is 45# steel. Our shafts are solid and not easily damaged.
4.The shaft and roller are arranged by the key grooves to prevent the linear speed of the shaft from being inconsistent with the roller, which will cause displacement.

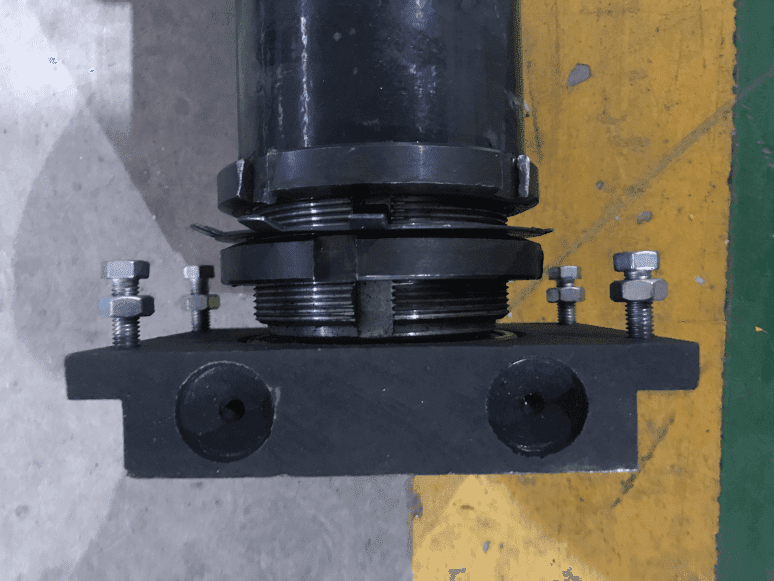

5.The design of positive and negative turnbuckles, double lock nuts, and check mat can prevent the shaft from loosening during machine operation.
6. Spacer is made of 45# seamless steel pipe, which is strong enough to ensure the normal operation. After boiling black processing, not easy to rust.
7. The bearing can avoid paint scratches caused by inconsistent line speeds.

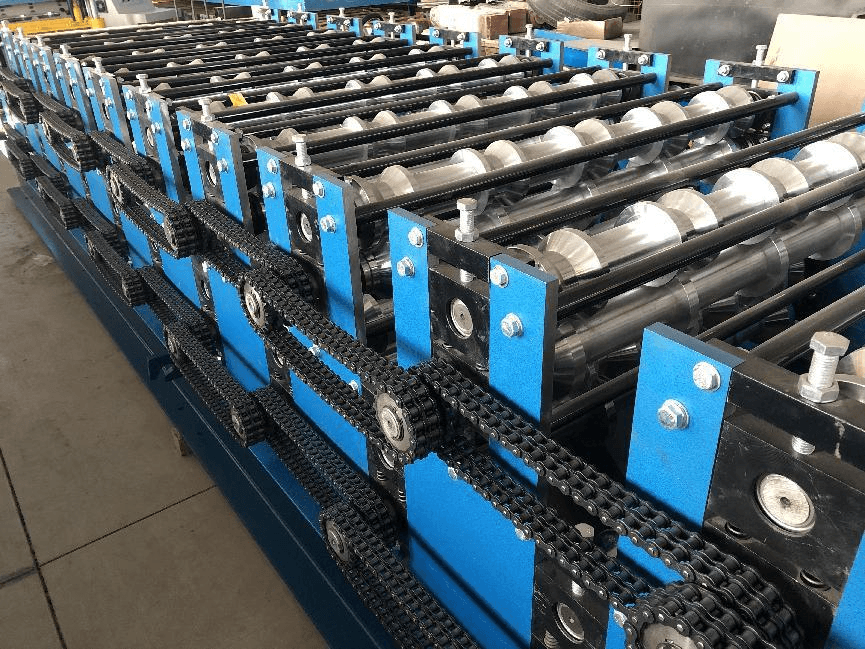

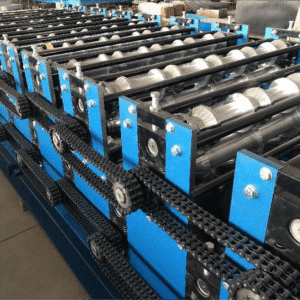

8.The machine adopts double chain drive, which is more stable and durable than single chain.
Hydraulic Shearing
The blade material is Cr12.The upper blade is inserted into the frame. And we adopt two lines of bolts and nuts to fix each blade, which has high stability.
Hydraulic Station

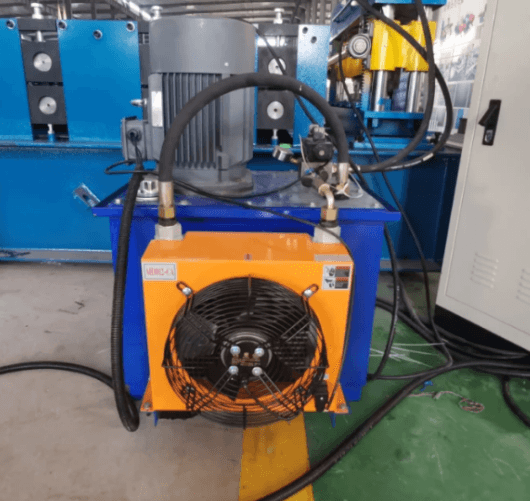

Hydraulic Station provides the power for the shearing mechanism. We adopt the oil of 46# and large valve which is not easy to block. And the power is 5.5kw. The capacity of the fuel tank is 110 liters. Equipped with air cooling devices to prevent the hydraulic oil from overheating and affecting the operation of the machine. The motor of hydraulic station is a Chinese famous brand with good quality and long service life.
Electric Control System

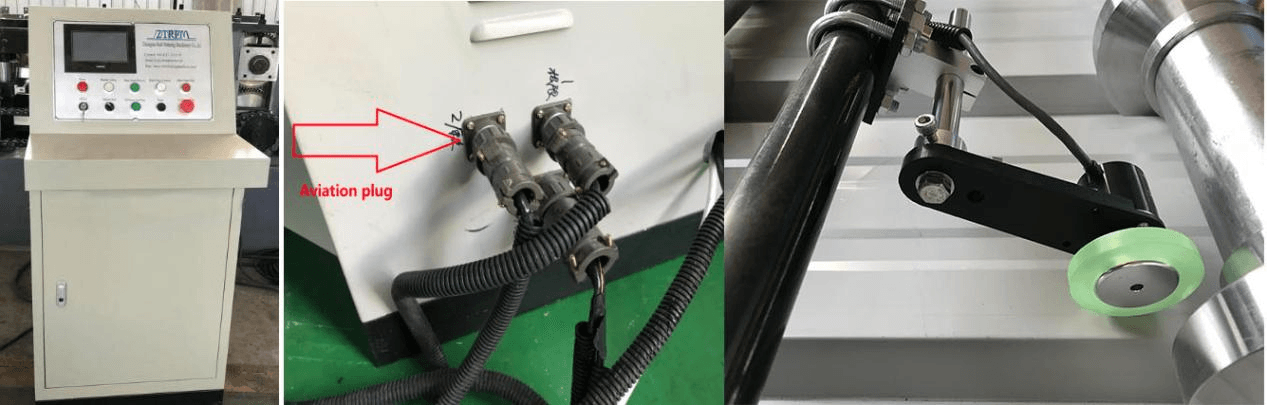

There are touch screen and manual buttons to control the movement of the machine and the length of the sheet. The regular language of the panel is Chinese or English according to your needs.
Equipped with internationally well-known brands such as Delta, Schneider, Siemens. In addition, the electronic contacts in our manual buttons are silver, which has good conductivity, accuracy and long service life.
Each wire marked with a number or letter is installed neatly. The aviation plug used to integrated these wires together is inside a box to protect it. And it is convenient for your use. You can choose to install remote operating system of PLC. So that our engineers will debug it for you remotely when there is a problem with the machine.
We adopt Omron counters with accurate counting measurement and good quality.

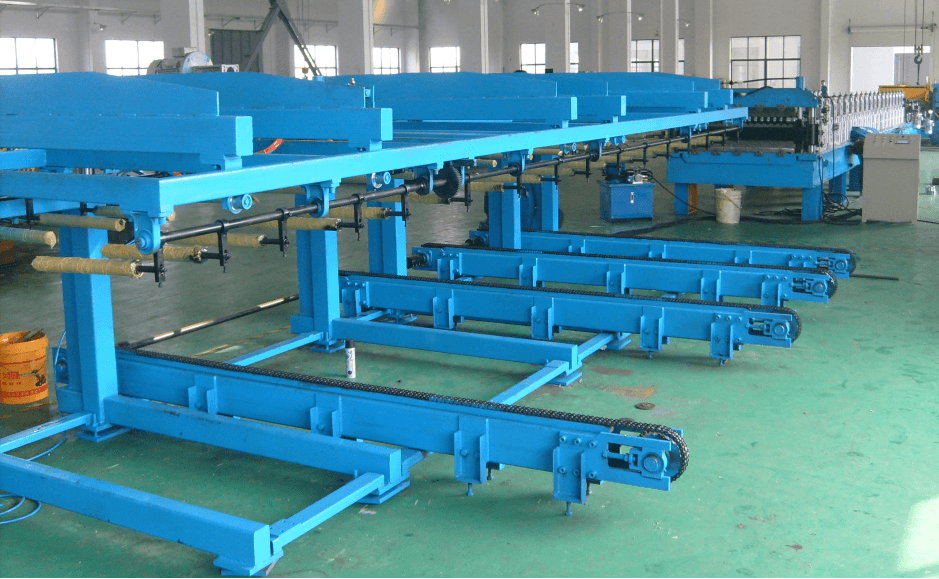

Liftable automatic stacker
This is a liftable automatic stacker with double layer roofing sheet machine. It is convenient to adapt to two discharge outlets with different heights, so as to receive two roofing sheet with different heights.
