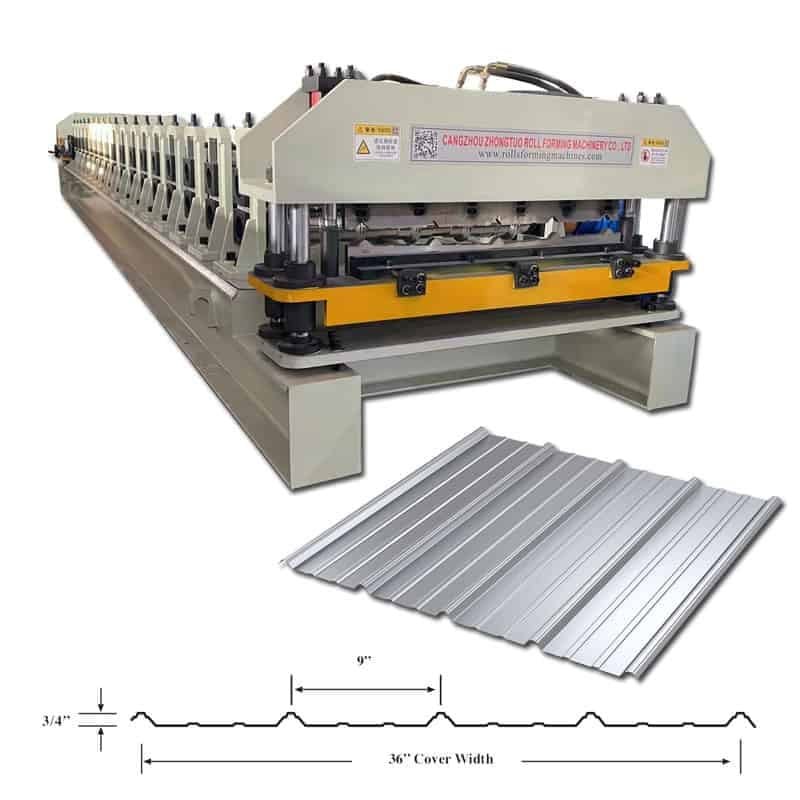

AG Panel Roll Forming Machine – High-Performance Metal Roofing Solution
The AG Panel Roll Forming Machine is an advanced industrial tool designed for the efficient production of AG panels, commonly used in roofing and siding applications for agricultural, commercial, and industrial buildings. Known for their wide-ribbed structure, AG panels provide superior durability, strength, and cost-effectiveness, making them a preferred choice for long-lasting metal roofing solutions.
An AG Roof Panel Roll Forming Machine is an essential piece of equipment in the construction industry, used to manufacture high-quality metal roof panels from steel coils. Utilizing a continuous roll-forming process, this machine shapes flat metal sheets into specific profiles through a series of precision rollers. Designed for efficiency and high-speed production, the AG panel machine delivers durable, weather-resistant roofing panels suitable for various applications.
These machines come in different sizes and configurations to meet diverse production needs. When selecting an AG Panel Roll Forming Machine, it’s crucial to consider the desired panel profile, material specifications, and production capacity to ensure optimal performance and efficiency.
A high-performance AG Panel Metal Roofing Roll Forming Machine consists of the following essential components:
- 5-Ton Uncoiler – Available in manual or automatic configurations.
- Feeding and Guiding System – Ensures precise metal sheet alignment.
- Pre-Shearing Device (Optional) – Available in manual, electric, or hydraulic versions.
- Roll Forming Unit – Custom roll forming stands for different panel designs.
- Cutting Mechanism – Hydraulic or electric cutting for precision panel sizing.
- Control Panel – Equipped with a PLC system for automated operation.
- Hydraulic Station – Provides power for cutting and forming functions.
- Collection Table/Auto Stacker – Organizes and stacks finished panels for efficient handling.
Technical Specifications of AG Roof Panel Roll Forming Machine
- Production Process: Uncoiling → Feeding & Guiding → Roll Forming → Cutting → Collecting → Packaging
- Uncoiler Capacity: 5 Ton
- Coil Thickness: 0.3–0.8 mm
- Coil Material: PPGI, GI, Alzn, Stainless Steel, Aluminum
- Roller Material: 40CR, Hardened & Chromed
- Forming Stands: 18
- Shaft Material: 42CR, 75mm Diameter
- Motor Power: 7.5kW
- Hydraulic Cutting Power: 4kW
- Transmission System: Chain & Gear
- PLC Brand: Siemens
- Encoder: Omron
- Production Speed: 15-20 meters per minute
Advantages of AG Panel Roll Forming Machine
- Durable & Weather-Resistant Panels – AG Panels provide long-lasting protection against extreme weather conditions.
- Cost-Effective & Low Maintenance – Reduces long-term roofing costs and requires minimal upkeep.
- Customizable Panel Profiles – Various configurations to meet project-specific requirements.
- High-Speed & Efficient Production – Capable of producing panels at speeds of up to 20 meters per minute.
- Reliable Performance – Built with high-quality components from trusted brands like Siemens and Omron.
Why Choose Our AG Panel Roll Forming Machine?
ZTRFM is a leading manufacturer of AG Panel Roll Forming Machines in China, specializing in the design and production of portable roof tile roll forming machines and AG panel roofing machines. Our machines are engineered for precision, durability, and efficiency, ensuring superior metal panel production for roofing and siding applications.
For more information on our AG Panel Roll Forming Machine, contact us today to get a customized solution tailored to your manufacturing needs.
