The aforementioned introduction pertains to a fixed-width vertical Snap lock standing seam rolling machine. Now, I present to you an adjustable Snap lock standing seam rolling machine, one that allows for customization of any desired width. This type of machine offers greater diversity and flexibility, catering to a wider range of needs.
Here’s an illustrative example of its specifications:
SPECIFICATIONS:
Rib Height: 1.75″
Standard Overall Width: 18″
Customizable Width Range: 12″-20″
Coil Feed: 24″
Warranty: 30-year limited*
Coverage Area (Roof): 18″ (standard), with alternate widths of 16″, 14″, and 12″ available
Available Gauges: 24, 22
Substrate: Minimum AZ 50
Finish: Cool 500 – PVDF
Fasteners: Concealed
Panel Length: 1′ to 52′
Recommended Minimum Roof Slope: 3/12**
Installation: Over a solid substrate, optionally with an underlayment between the panel and the substrate.

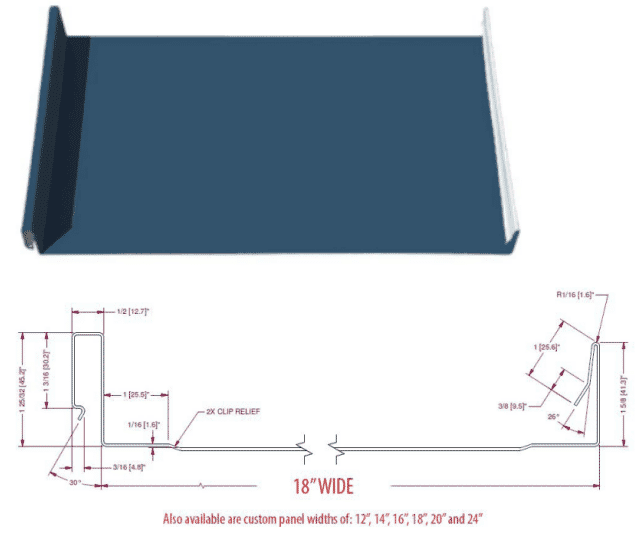

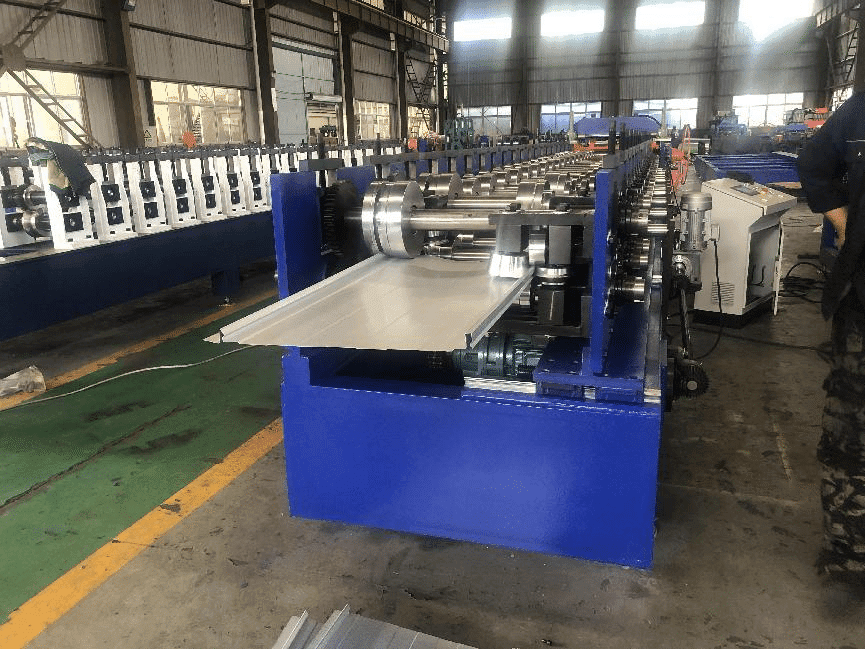

Included below is a drawing of the profile and the finished product：
Advantages of the Snap lock standing seam rolling machine System:
The overall structure boasts exceptional waterproofing and drainage capabilities, ensuring that joints can articulate fully regardless of the building’s shape. The absence of nail holes across the entire roof allows for free expansion and contraction due to temperature changes, thereby preventing temperature stress and eliminating the potential risk of water leakage associated with screw fixation methods.
Chemical sealants are unnecessary, thereby avoiding pollution and aging issues.
The integrated roof opening and lightning protection system is mature and reliable.
Excellent air permeability keeps the overall structure naturally dry for prolonged periods, extending the building’s lifespan.
The unique shape of the three-dimensional curved arc is both aesthetically pleasing and easy to process.
The structure is simple, lightweight, and safe, capable of withstanding high negative wind pressures, particularly in typhoon and heavy rain areas.
It is suitable for both old roof renovations and the addition of new roofs over existing ones.
The construction process is safe, convenient, rapid, precise, and economical.
